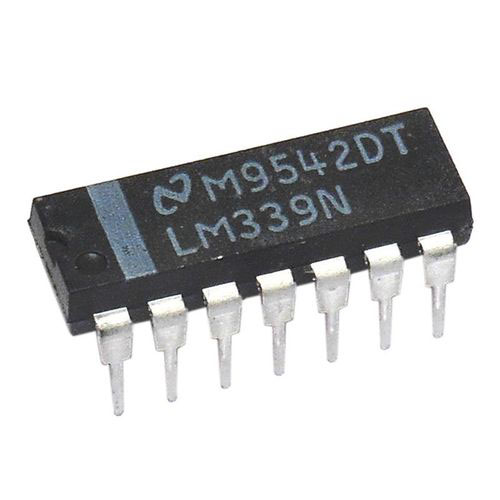

LM339N Quad Comparator


Add to Cart:

Product Description:

The LM339N Quad Comparator consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV max for all four comparators.
Operation from split power supplies are also possible.

Supply Voltage: +36 VDC or +/-18 VDC
Input Voltage: -0.3 VDC to +36 VDC
Input Current: 50mA
Pd: 1050mW
PDIP-14 Package
Voltage Gain: 50 to 200V/mV
Output Sink Current: 16mA

High precision comparators
Reduced Vos Drift over temperature
Eliminates need for dual supplies
Allows sensing near GND
Compatible with all forms of logic
Power drain suitable for battery operation

MFG: National Semiconductor


  • Model: 180-1126
  • Shipping Weight: 0.002lbs
  • 20 Units in Stock


This product was added to our catalog on Sunday 03 June, 2012.
