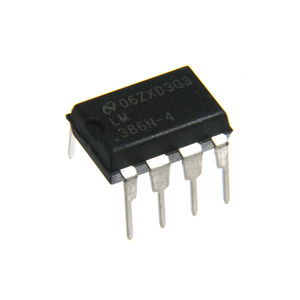

LM386N-4 Audio Power Amplifier 1 Watt PDIP-8


Add to Cart:

Product Description:

The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200.
The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the LM386 ideal for battery operation.

Power(Out): 1000mW (VS= 16V, RL=32 Ohm, THD = 10%)
Supply Voltage: 5-18V dc
BW: 300 KHz
THD: 0.2%

*AM-FM radio amplifiers
*Portable tape player amplifiers
*TV sound systems
*Line drivers
*Ultrasonic drivers
*Small servo drivers
*Power converters

MFG: National Semiconductor
MPN: LM386N-4


  • Model: 180-1104
  • Shipping Weight: 0.0006lbs
  • 16 Units in Stock


This product was added to our catalog on Tuesday 24 January, 2012.
