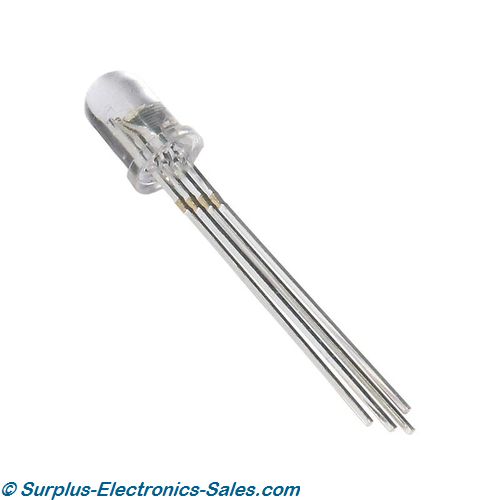

RGB 5mm Common Cathode LED

$0.36

Add to Cart:

Product Description:

RGB 5mm Common Cathode LED
Tri-color LED with common cathode configuration.
With a common cathode you connect the cathode to ground and connect each LED's anode through a resistor to a positive terminal. LED's are current sourced.
Specifications:
Size: 5 mm
Lens color: Water Clear
Forward current: 20 mA
Life rating: 100,000 hours
Forward voltage: Red: 2.0 to 2.2 VDC, Green: 3.2 to 3.4 VDC, Blue: 3.2 to 3.4 VDC
Viewing angle: 25° to 35°
Luminous intensity: 1000-4000 mcd

Pin 1 Red
Pin 2 Common Cathode (Ground)
Pin 3 Green
Pin 4 Blue

MFG: Oasis


Details

  • Model: 210-1043
  • Shipping Weight: 0.0013lbs
  • 18 Units in Stock

Description



This product was added to our catalog on Sunday 21 October, 2012.
