RGB 5mm Common Anode LED

$0.36

Add to Cart:

Product Description:

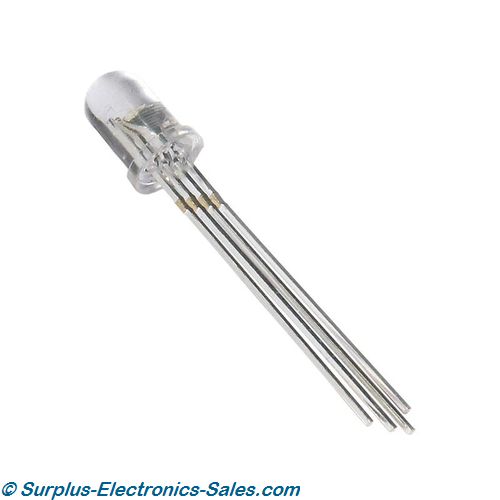

RGB 5mm Common Anode LED
Tri-color RGB LED with common anode configuration.
With a common anode you connect the anode to +VCC and connect each LED's cathode through a resistor to a negative terminal. LED's are current sinked
Specifications:
Size: 5 mm
Lens color: Water Clear
Forward current: 20 mA
Life rating: 100,000 hours
Forward voltage: Red: 2.0 to 2.35 VDC, Green: 3.0 to 3.5 VDC, Blue: 3.0 to 3.5 VDC
Viewing angle: 25° to 35°
Luminous intensity: 1000-4000 mcd

LED Pin configuration:
| | | |
| | | |
| | | |
x | | x
x | x
2 1 3 4

Pin 1 Common Anode
Pin 2 Red
Pin 3 Green
Pin 4 Blue

MFG: Oasis


Details

  • Model: 210-1050
  • Shipping Weight: 0.0013lbs
  • 7 Units in Stock
