25K Potentiometer With Switch, Linear Taper

$1.49

Add to Cart:

Product Description:

25K Linear Taper Potentiometer with 3 Amp 125Vac ON/ON Switch.
Max switch rating is 1.5A at 250Vac or 3A at 125Vac
Potentiometer tolerance is 20%
Potentiometer wattage: 1/2W
Length from rear end of pot to far end of switch: 1.0"
Assembly length (far end of switch to base of threaded bushing): 1-3/16"
Length from start of threaded bushing to end of shaft: 13/16"
Shaft extended adds: 3/16"
Assembly Length with shaft extended: 2-3/8"
Assembly Height: 1-1/2"
Assembly Width: 7/8"
The shaft has a 1/4" diameter half-moon shape and is a push/pull type.
Threaded Bushing is 3/8" diameter and includes hardware.

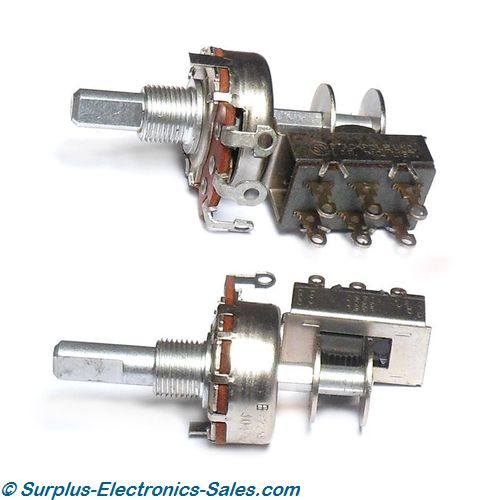

Two views for clarity.


Details

  • Model: 250-1037
  • Shipping Weight: 0.05lbs
  • 14 Units in Stock

Description



This product was added to our catalog on Tuesday 24 January, 2012.
