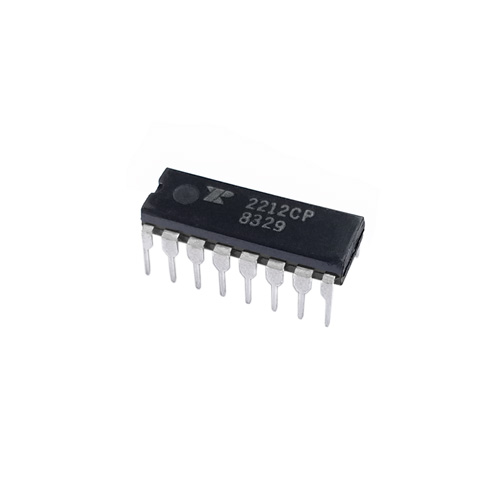

XR-2212CP Precision Phase-Locked Loop

$2.99

Add to Cart:

Product Description:

The XR-2212 is an ultra-stable monolithic phase-locked loop (PLL) system especially designed for data communications and control system applications. Its on board reference and uncommitted operational amplifier, together with a typical temperature stability of better than 20ppm/°C, make it ideally suited for frequency synthesis, FM detection, and tracking filter applications.
PDIP-16
FEATURES:
* Quadrature VCO Outputs
* Wide Frequency Range (0.01Hz to 300kHz)
* Wide Supply Voltage Range (4.5V to 20V)
* TTL/HCMOS Compatible (VCC = 5VDC)
* Wide Dynamic Range (2mV to 3V rms)
* Adjustable Tracking Range (+/-1% to +/-80%)
* Excellent Temp. Stability 20ppm/°C, Typ.
APPLICATIONS:
* Frequency Synthesis
* Data Synchronization
* FM Detection
* Tracking Filters
* FSK Demodulation

MFG: Exar
MPN: XR-2212CP


Details

  • Model: 180-1139
  • Shipping Weight: 0.002lbs
  • 40 Units in Stock
