Tip-Over Switch, 12A 125Vac

$2.99

Add to Cart:

Product Description:

The Durakool 12A 125Vac TO-3 tip-over switch can be specified by the angle of travel away from the horizontal required to " break" the contact. The operating angle designed for the installation must be smaller than this specification to ensure proper switch action. It is essentially a metal enclosed mercury tilt switch with high current contacts.

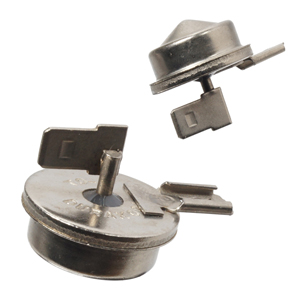

The switch is normally positioned the way shown in the picture, it is normally closed, when tilted more than 5-10 degrees in any direction it will open the switch thereby opening the circuit.
AC Amp: 12.5 @ 120V/60 Hz
AC Amp: 6 @ 250VAC/60Hz
Min. Break Angle (from 0 degree horizontal reference): 5-10 Degrees
Resistive Watts: 1500
Motor Load Horsepower: 0.167
Size: 0.87" Length with leads---0.94 Diameter (Max.)
Uses two male 1/4" / 0.250" quick connect terminals.
Bracket has a square mounting hole 1/4" X 1/4" in size.

MFG: Durakool
MPN: TO-3


Details

  • Model: 280-1005
  • Shipping Weight: 0.033lbs
  • 3 Units in Stock

Description



This product was added to our catalog on Sunday 25 July, 2010.
