OP07 Ultra-Low Offset Voltage OpAmp

$0.89

Add to Cart:

Product Description:

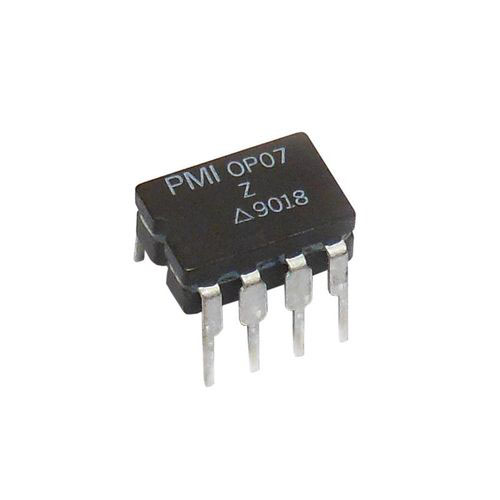

OP07Z Ultra-Low Offset Voltage OpAmp
Ceramic 8 PIN DIP IC
The OP-07 Ultra-Low Offset Voltage Op Amp Has a very low input offset voltage which is obtained by trimming at the wafer stage. These low offset voltages generally eliminate any need for external nulling. The OP-07 also features low input bias current and high open-loop gain. The low offsets and high open-loop gain make the OP-07 particularly useful for high-gain instrumentation applications.
Features:
Operating Temperature: -55 C to 125 C
Vss: 22V Max.
Vid: 30V Max
Vin: 22V Max
Slew Rate: 0.3 V/us
CMRR: 126dB
Input Resistance Diff. Mode: 60M Ohm
Input Resistance Com. Mode: 200G Ohms
Large Signal Voltage Gain: 400-500 uV/V
Operating Temperature: -55 C to 125 C

Applications:
Wireless Base Station Control Circuits
Optical Network Control Circuits
Instrumentation
Precision Filters
Sensors and Controls
* Thermocouples
* RTDs
* Strain Bridges
* Shunt Current Measurements

MFG: PMI
MPN: OP07Z


Details

  • Model: 180-1111
  • Shipping Weight: 0.002lbs
  • 27 Units in Stock
